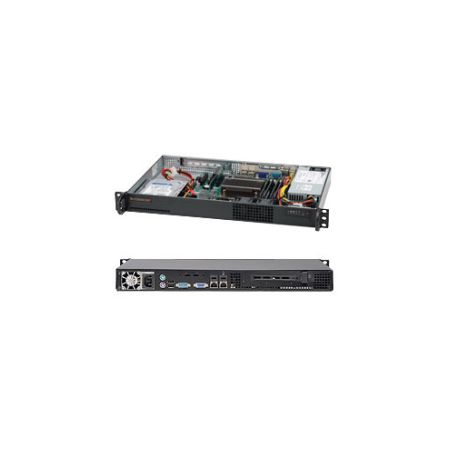

Supermicro SuperServer 5017C-LF Barebone System - 1U Rack-mountable - Intel C202 Chipset - Socket H2 LGA-1155 - 1 x Processor Support - Black Item # 972130
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
972130
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The 5017C-LF server is designed to deliver solid performance and mission-critical reliability for customer applications.
Product Details
| Item # | 972130 |
| Manufacturer # | SYS5017CLF |
| Number of SATA Interfaces | 6 |
| Ethernet Technology | Gigabit Ethernet; Fast Ethernet |
| RAID Levels | 0, 1, 1+0, 5 |
| Processor Supported | Xeon; Core i3; Pentium Dual-core |
| Maximum Power Supply Wattage | 200 W |
| height | 1.7 in |
| Additional Information | Drive Bays Detail:1x 3.5" or optional 2x 2.5" Internal SATA2 Hard Drive Bays |
| Direct Media Interface | 5 GT/s |
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Total Number of USB Ports | 9 |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 5017C-LF Barebone System; 1 x Super X9SCL-F Motherboard; 1 x 1U Chassis; 1 x 35CM SATA FLAT S-S W/ LATCH PBF; 1 x Driver CD for X9-UP Series Motherboard; 1 x 1U RISER PCI-E (X8) TO PCI-E (X8) ROHS; 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156; 1 x 200W,1U W/ STANDARD HARNESS OUTPUT LC; 1 x US power cord 16AWG 6ft, PBF (default for high watt); 1 x FRONT CABLE 16PIN TO 16PIN 32.5CM,PBF; 2 x High current (0.14A) version of Fan-0100L4 (40x28mm PWM) |
| depth | 11.3 in |
| Product Name | SuperServer 5017C-LF Barebone System |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| VGA | Yes |
| weight | 11 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 1 |
| Maximum Memory | 32 GB |
| Number of Total Memory Slots | 4 |
| controller type | Serial ATA/300 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 9 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1333/PC3-10600 |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 1 |
| Direct Media Interface Supported | Yes |
| Processor Socket | Socket H2 LGA-1155 |
| Chipset Model | C202 |
| Chipset Manufacturer | Intel |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| color | black |
| warranty length | 3-year limited |
| model name | 5017C-LF |
| Number of PCI Express x8 Slots | 1 |
